Aqara Shutter Switch H2 EU

This smart in-wall switch controls four-wire bidirectional AC motors for roller blinds, shutters, Venetian blinds and more. It supports Thread or Zigbee, so it fits into your smart home ecosystem. The buttons on the left open, close and stop the shutter, and the customisable wireless buttons on the right expand your automation options.

Thread or Zigbee

The switch supports both protocols. In Thread mode, it connects to Matter ecosystems; a Thread-enabled Matter controller for that ecosystem is required. Zigbee mode needs an Aqara Zigbee hub and unlocks exclusive Aqara features, while staying compatible with classic Aqara Zigbee hubs. You can switch between protocols as needed.

Shutter position, one tap away

Set your shutter to any position from 1% to 100% using the switch, the app, voice, schedules, scenes or automations. Fine-tune it for light, privacy or airflow, or to protect furniture from sunlight, whether you are home or away.

Calibration as desired

Smart Calibration gives a quick one-tap setup. Custom Calibration makes the shutter stop exactly where you want. Route Recalibration resets positions after shifts or power cuts, so your shutters keep moving accurately.

Configurable wireless buttons

The left buttons handle open, close and pause. The 2 right buttons can run preset shutter scenes or control other smart devices in your home. In Custom Press mode, each button also supports double press and hold, for up to 6 automation options. Preset shutter scenes and Custom Press mode work fully in Zigbee mode with an Aqara hub.

Subtle indicator light

The low-profile LED only lights up during operation, so it will not disturb your sleep. It can also be turned off completely at night through an automation.

Safety and energy

It also offers power monitoring, over-temperature and overload protection, and power-off memory. Power monitoring may not show in some Matter ecosystems; use Zigbee mode for full features.

55 mm frame support

The Shutter Switch H2 EU follows the standard 55 × 55 mm switch module size and works with popular frames such as Gira System 55 and Merten M. Exact fit may vary with non-Aqara multi-gang frames.

Specifications

• Product name: Shutter Switch H2 EU
• Model: DS-K02D
• Dimensions: 86 × 86 × 45 mm
• Wireless protocols: Thread, Zigbee, Bluetooth
• Electrical rating: 100-250 VAC, 50/60 Hz, max 8 A
• Thread and Zigbee: 2405-2480 MHz, max output power ≤ 13 dBm
• Bluetooth: 2402-2480 MHz, max output power ≤ 13 dBm
• Operating temperature: -10 °C to 40 °C
• Operating humidity: 0 to 95% RH, no condensation

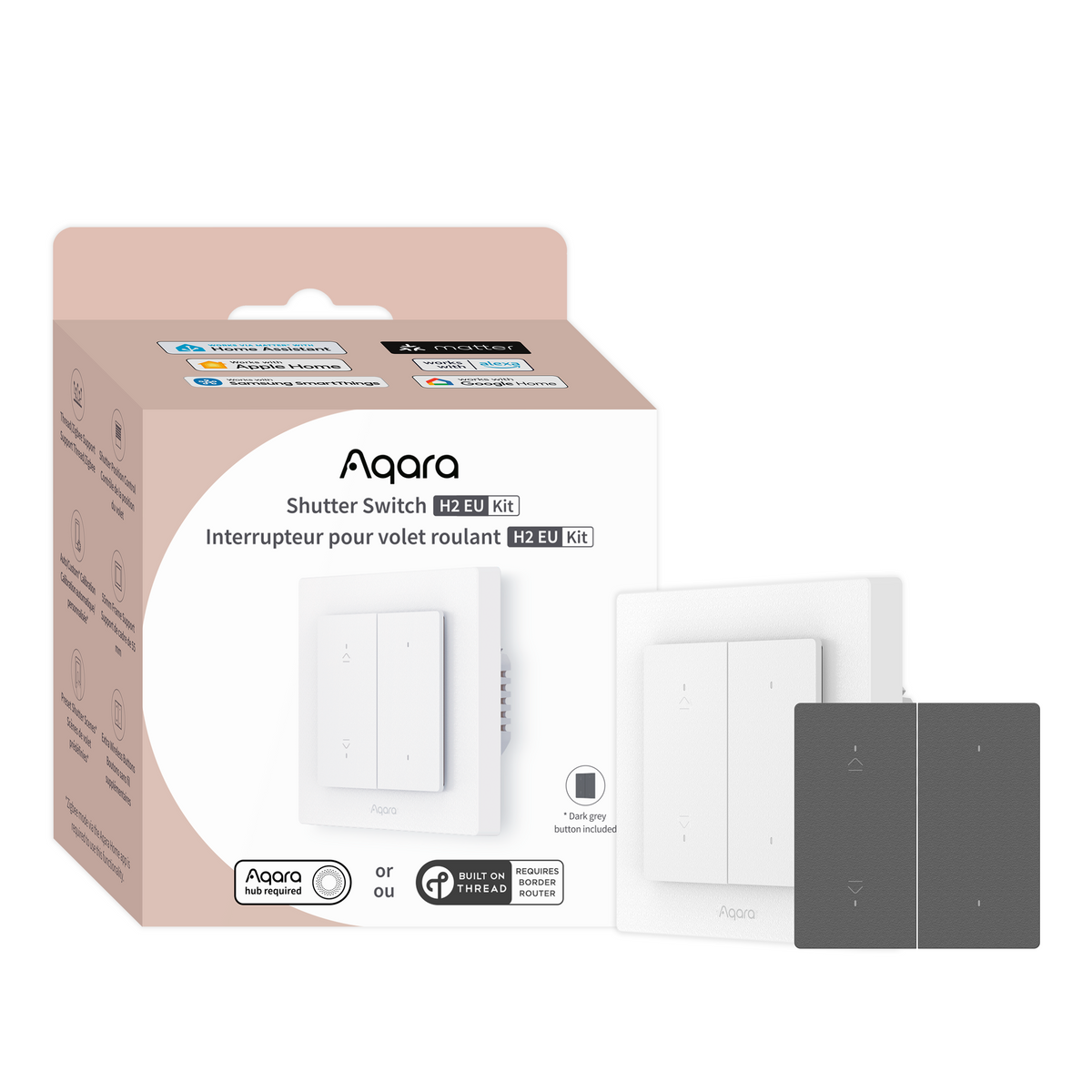

• In the box: Shutter Switch H2 EU × 1, User Manual × 1, Screw Kit × 1, Compliance Statement × 1, Grey Switch Button × 1
